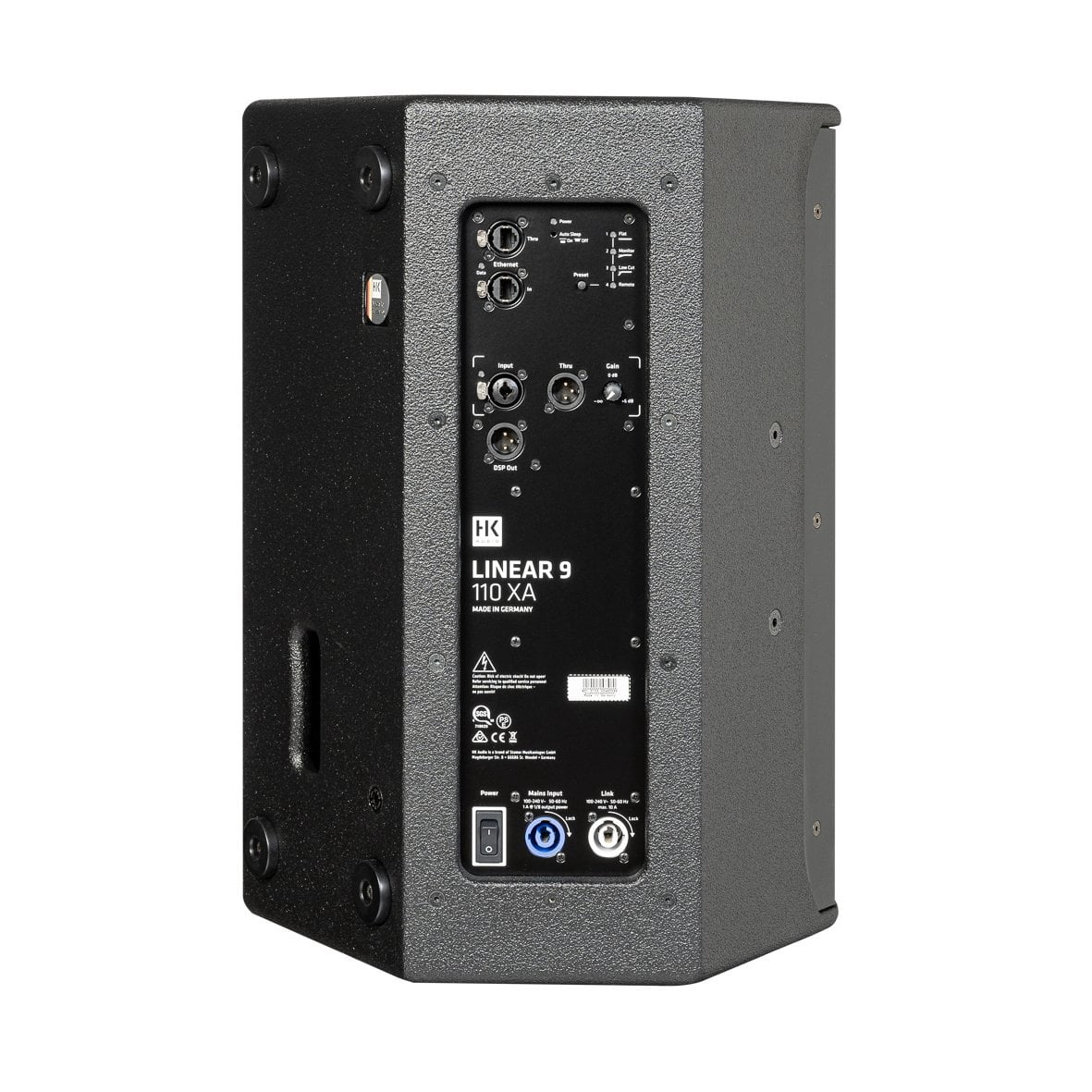

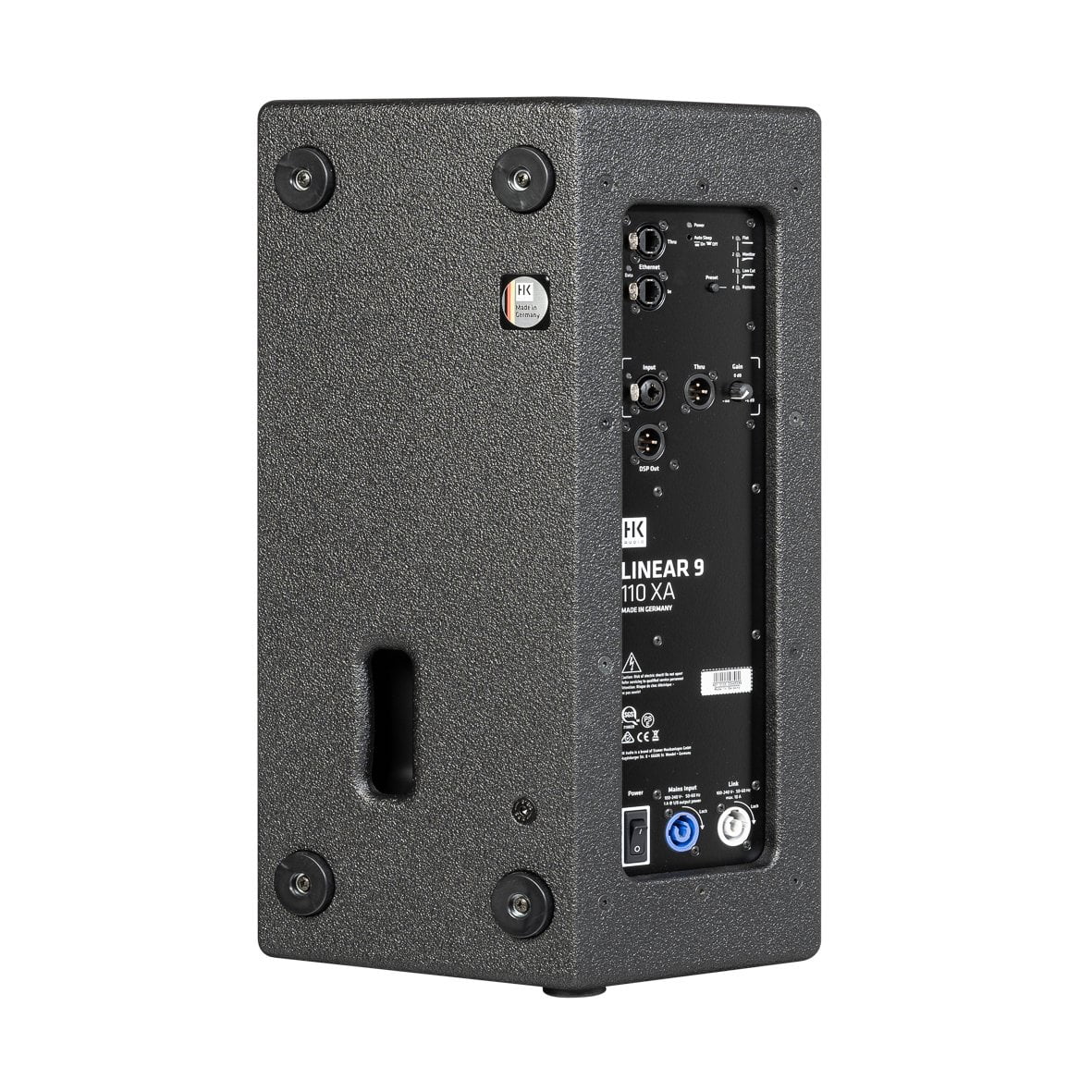

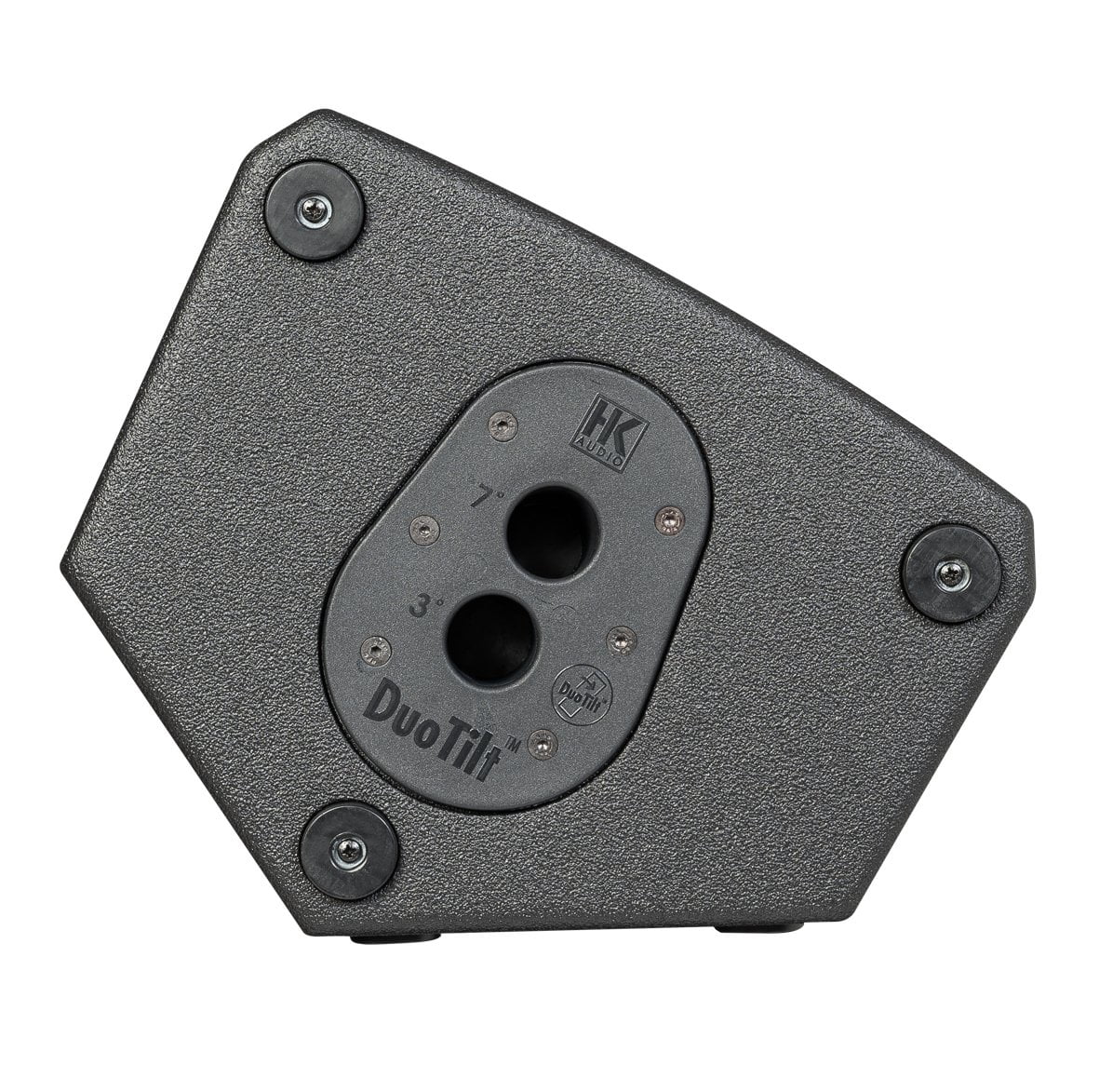

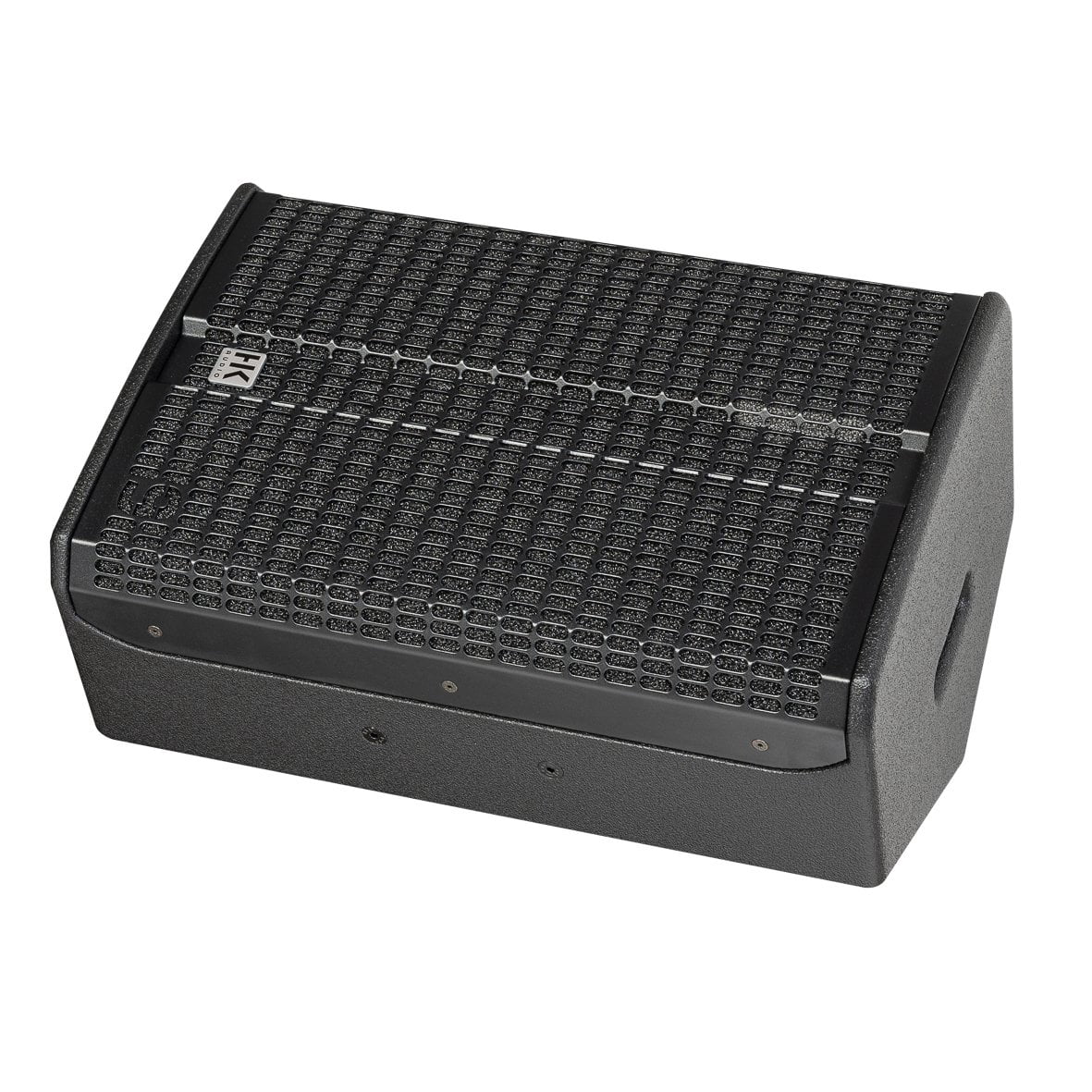

HK Audio LINEAR 9 110 XA 700 Watt 10" Active Monitor

<p></p><p><strong>Overview</strong></p><br><p>The HK Audio LINEAR 9 110 XA is a versatile 10" active multifunctional loudspeaker designed for professional audio applications. Equipped with a 10" bass-midrange driver and a 1" compression driver, it delivers precise sound reproduction across a wide frequency range. The rotatable 80 x 60 constant directivity horn ensures consistent near-field dispersion, making it suitable for various venues and setups. Advanced DSP capabilities, including a 10-band parametric EQ and FIR filtering, allow for tailored sound customization. Constructed with a durable birch multiplex enclosure and finished with a black PU coating, this speaker is built to withstand rigorous use while maintaining a sleek appearance.</p><br><p><strong>Features:</strong></p><br><ul><br><li><strong>Active multifunctional loudspeaker with network control</strong> Provides professional-grade flexibility.</li><br><li><strong>10" bass-midrange driver 2.5" voice coil and 1" compression driver 1.4" voice coil</strong> Ensures powerful and detailed sound.</li><br><li><strong>Rotatable 80 x 60 constant directivity horn</strong> Allows optimized sound dispersion.</li><br><li><strong>Advanced DSP platform</strong> Features a 10-band parametric EQ, delay, and limiting.</li><br><li><strong>Network technology for precise DSP control</strong> Includes DSP-Out for non-networked speakers.</li><br><li><strong>Selectable presets</strong> Adaptable for use as a monitor or system speaker.</li><br><li><strong>High-resolution 96 kHz AD/DA converters</strong> Ensures pristine audio with FIR filtering and low latency &lt;2.6 ms.</li><br><li><strong>Multi-purpose design</strong> 30 angle for both FoH and monitor applications.</li><br><li><strong>DuoTilt feature</strong> Offers 3 or 7 tilt for precise tripod mounting.</li><br><li><strong>Durable birch multiplex enclosure</strong> Coated with black PU for enhanced protection.</li><br></ul><br><p><strong>Specifications:</strong></p><br><ul><br><li><strong>Max SPL 10% THD:</strong> 126 dB 70 Hz 12 kHz, averaged, half-space</li><br><li><strong>Max Peak SPL 10% THD:</strong> 129 dB half-space</li><br><li><strong>Frequency Response 3 dB:</strong> 70 Hz 19 kHz</li><br><li><strong>Frequency Response -10 dB:</strong> 65 Hz 20 kHz</li><br><li><strong>Power Output RMS:</strong> 700 W, Class D, bi-amped</li><br><li><strong>Low/Mid Driver:</strong> 10" with 2.5" voice coil</li><br><li><strong>HF Driver:</strong> 1" with 1.4" voice coil</li><br><li><strong>Horn Directivity:</strong> 80 x 60, rotatable CD horn</li><br><li><strong>Crossover Frequency:</strong> 2 kHz, FIR X-over, 60 dB/octave</li><br><li><strong>Max Input Level:</strong> +20 dBu</li><br><li><strong>Analog Inputs:</strong> 1x balanced XLR combo</li><br><li><strong>Analog Thru:</strong> 1x balanced XLR</li><br><li><strong>DSP Out:</strong> 1x balanced XLR</li><br><li><strong>Network:</strong> Ethercon RJ45, 1x In, 1x Thru</li><br><li><strong>Filter Presets:</strong> Flat, Monitor, Low Cut, Remote</li><br><li><strong>Remote Software:</strong> DSP CONTROL Windows, macOS</li><br><li><strong>DSP Functions:</strong> 10-band parametric EQ, high/low pass filters, polarity, level, delay, limiter, mute</li><br><li><strong>Sample Rate:</strong> 96 kHz</li><br><li><strong>Latency:</strong> &lt;2.6 ms</li><br><li><strong>Mains Connector:</strong> Powercon NAC3 In/Thru, 100240 V</li><br><li><strong>Power Consumption:</strong> 1 A 100240 V, EN 62368-1 compliant</li><br><li><strong>Monitor Angle:</strong> 30</li><br><li><strong>Pole Mount:</strong> DuoTilt with 3/7 options</li><br><li><strong>Rigging Points:</strong> 5x M8...<p></p></li></ul>
